Message Queue using RabbitMQ

Message Queue:

A message queue is a form of asynchronous service-to-service communication used in serverless and microservices architectures. Messages are stored on the queue until they are processed and deleted. Each message is processed only once, by a single consumer

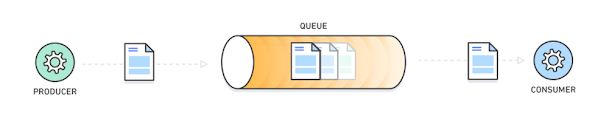

Image Source: aws.amazon.com


RabbitMQ:

RabbitMQ is a message broker: it accepts and forwards messages. You can think about it as a post office: when you put the mail that you want posting in a post box, you can be sure that the letter carrier will eventually deliver the mail to your recipient. In this analogy, RabbitMQ is a post box, a post office, and a letter carrier.

The major difference between RabbitMQ and the post office is that it doesn't deal with paper, instead it accepts, stores, and forwards binary blobs of data ‒ messages.

Advanced Message Queueing Protocol (AMQP):

Advanced Message Queuing Protocol (AMQP) is an application layer protocol that focuses on process-to-process communication across IP networks. An encoding schema and a set of procedures allow for two different servers to communicate regardless of the technology used. Overall, the goal of AMQP is to enable message passing through broker services over TCP/IP connections. AMQP is considered a compact protocol, since it’s a binary protocol, meaning that everything sent over AMQP is binary data. A binary protocol avoids sending useless data over the wire.

AMQP 0-9-1 Model:

The AMQP 0-9-1 Model has the following view of the world: messages are published to exchanges, which are often compared to post offices or mailboxes. Exchanges then distribute message copies to queues using rules called bindings. Then the broker either deliver messages to consumers subscribed to queues, or consumers fetch/pull messages from queues on demand.

AMQP 0-9-1 Model (source: rabbitmq.com)

  • When publishing a message, publishers may specify various message attributes (message meta-data)
  • when a message is delivered to a consumer the consumer notifies the broker
  • When message acknowledgements are in use, a broker will only completely remove a message from a queue when it receives a notification for that message (or group of messages).
  • when a message cannot be routed, messages may be returned to publishers, dropped.
Exchanges:

Exchanges are AMQP 0-9-1 entities where messages are sent to. Exchanges take a message and route it into zero or more queues

Source: CloudAMQP

the routing algorithm used depends on the depend on the exchange type and rules called bindings.

Bindings:

Bindings are rules that exchanges use (among other things) to route messages to queues. To instruct an exchange E to route messages to a queue Q, Q has to be bound to E. Bindings may have an optional routing key attribute used by some exchange types. The purpose of the routing key is to select certain messages published to an exchange to be routed to the bound queue. In other words, the routing key acts like a filter.

To draw an analogy:

  • Queue is like your destination in New York city
  • Exchange is like JFK airport
  • Bindings are routes from JFK to your destination. There can be zero or many ways to reach it

AMQP 0-9-1 brokers provide four exchange types:

  1. Direct Exchange
  2. Fanout Exchange
  3. Topic Exchange
  4. Headers Exchange
Besides the exchange type, exchanges are declared with a number of attributes, the most important of which are:
  • Name
  • Durability (exchanges survive broker restart)
  • Auto-delete (exchange is deleted when last queue is unbound from it)
  • Arguments (optional, used by plugins and broker-specific features)

Exchanges can be durable or transient. Durable exchanges survive broker restart whereas transient exchanges do not (they have to be redeclared when broker comes back online). Not all scenarios and use cases require exchanges to be durable.

Default Exchange:

The default exchange is a pre-declared direct exchange with no name, usually referred by an empty string. When you use default exchange, your message is delivered to the queue with a name equal to the routing key of the message. Every queue is automatically bound to the default exchange with a routing key which is the same as the queue name.

Direct Exchange:

A direct exchange delivers messages to queues based on the message routing key. A direct exchange is ideal for the unicast routing of messages (although they can be used for multicast routing as well). Here is how it works:

  • A queue binds to the exchange with a routing key K
  • When a new message with routing key R arrives at the direct exchange, the exchange routes it to the queue if K = R
fig: Direct Exchange (source: rabbitmq.com)

Fanout Exchange:
A fanout exchange routes messages to all of the queues that are bound to it and the routing key is ignored
fig: fanout exchange (source: rabbitmq.com)

Topic Exchange:
Topic exchanges route messages to one or many queues based on matching between a message routing key and the pattern that was used to bind a queue to an exchange. The topic exchange type is often used to implement various publish/subscribe pattern variations. Topic exchanges are commonly used for the multicast routing of messages.
fig: Topic Exchange (cloudamqp.com)

Headers Exchange:
A headers exchange is designed for routing on multiple attributes that are more easily expressed as message headers than a routing key. Headers exchanges ignore the routing key attribute. Instead, the attributes used for routing are taken from the headers attribute. A message is considered matching if the value of the header equals the value specified upon binding.
